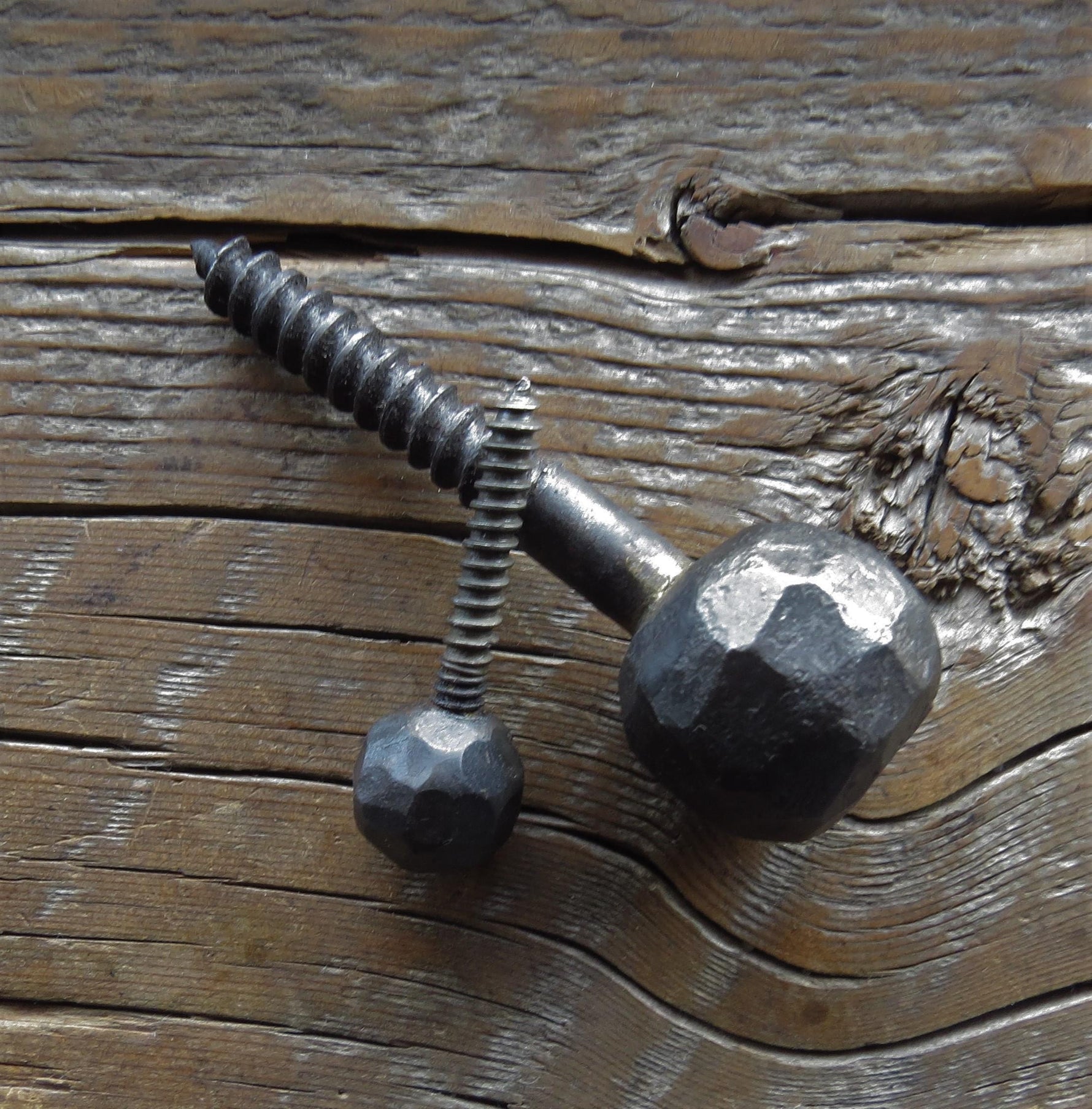

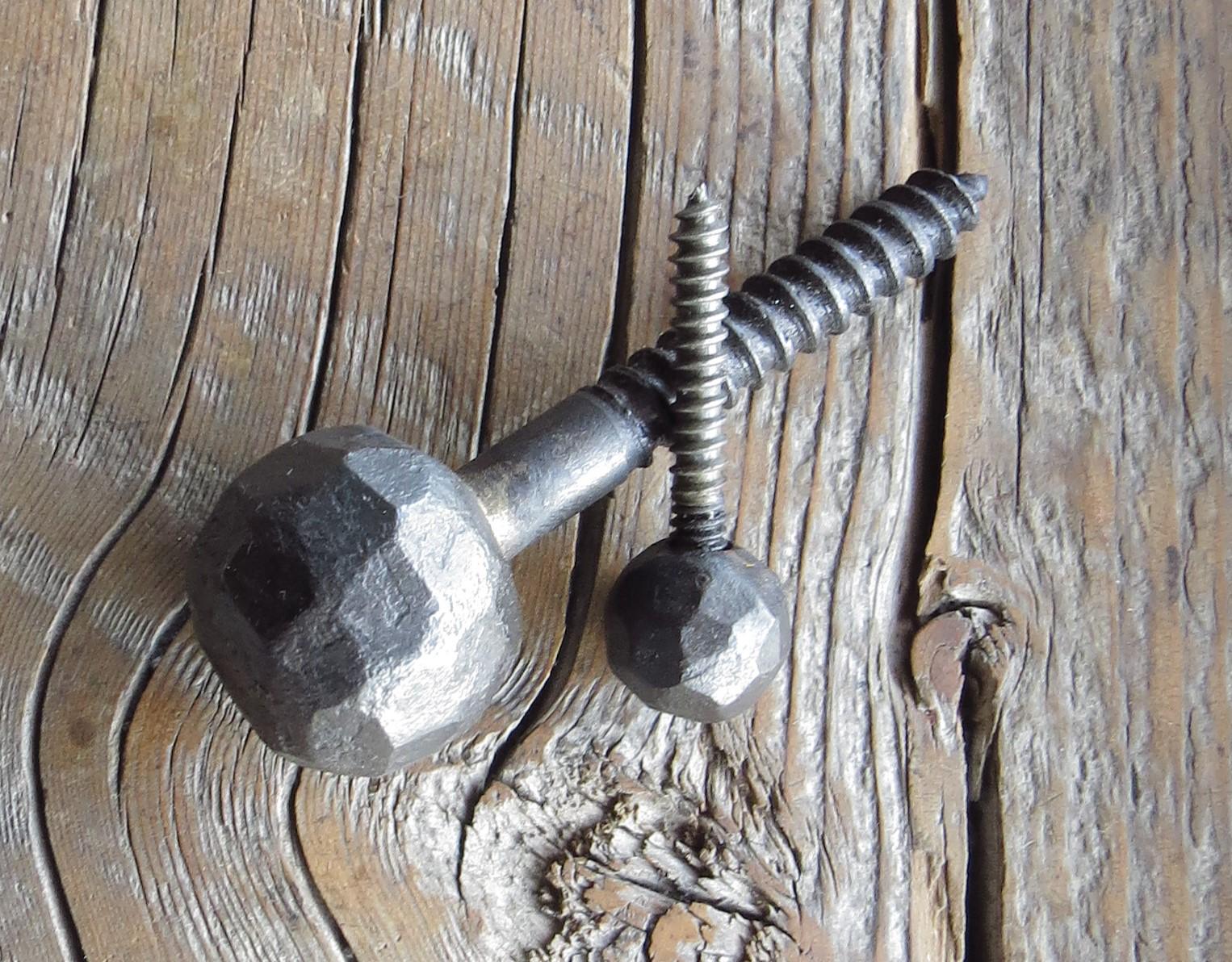

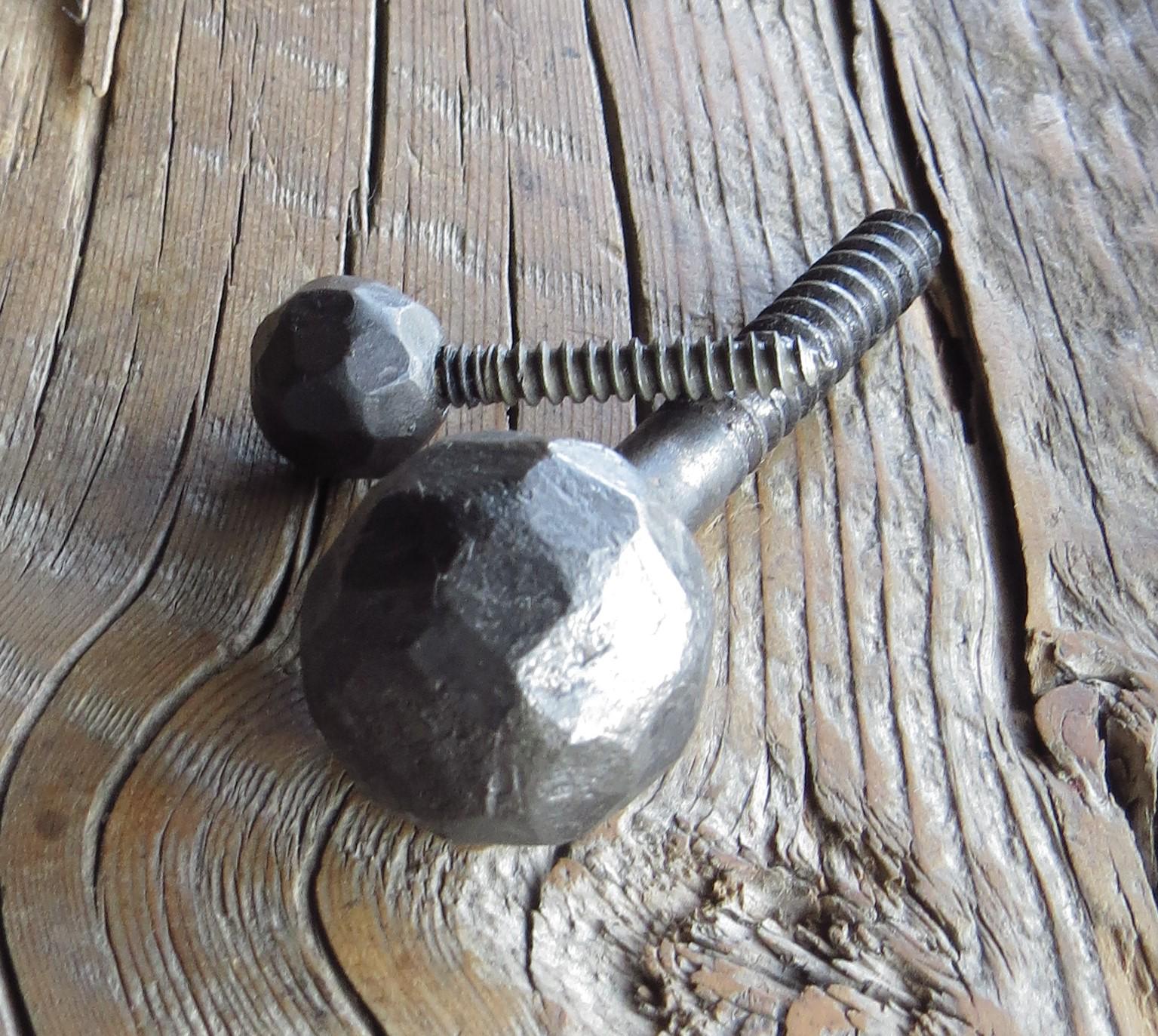

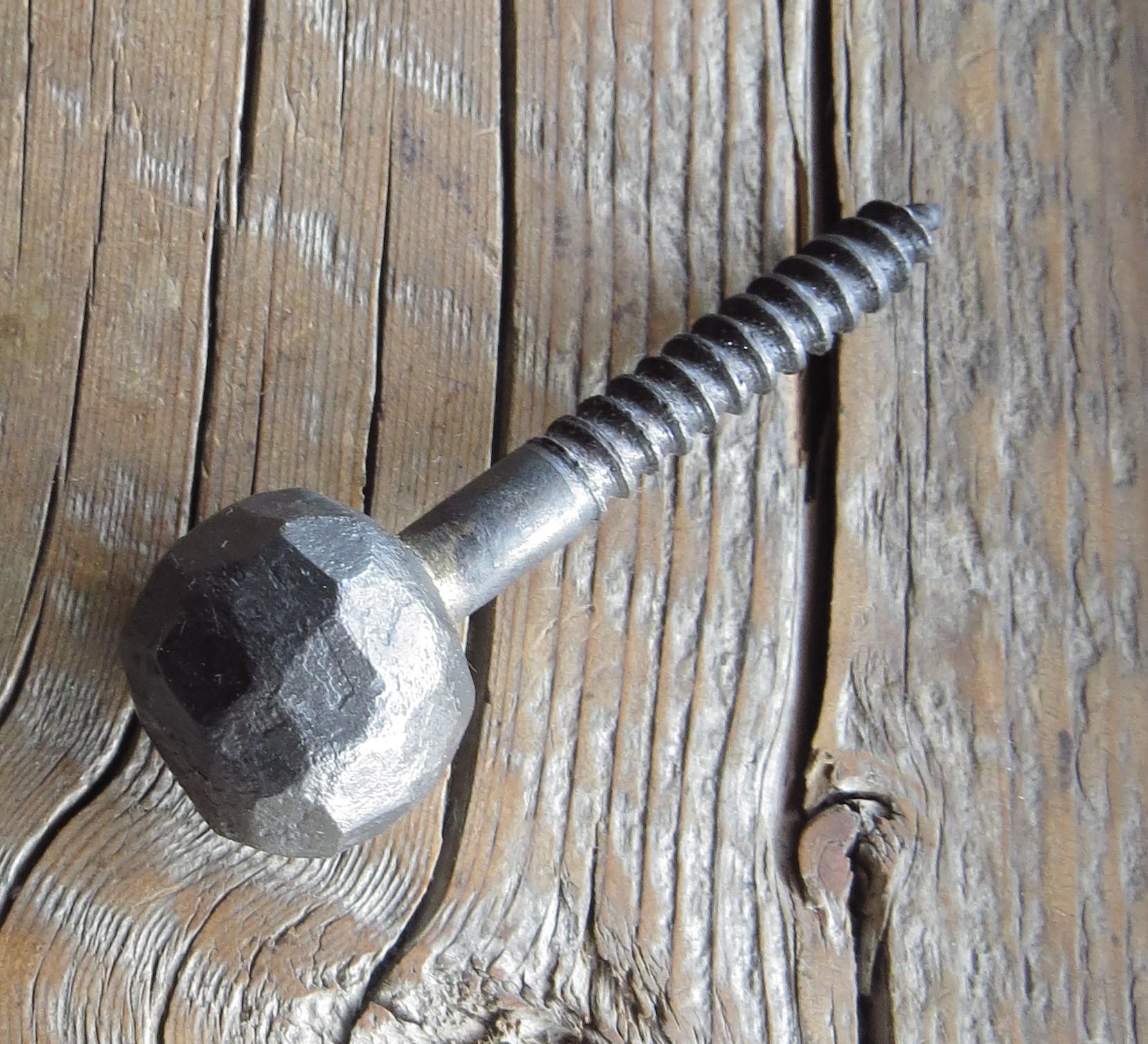

Hammered Ball Head Lag
5Hammered Ball Head Lag
Our HCL-03 Hammered Ball head lag has a unique look that lends itself to a rugged industrial look. If you will be ordering the Raw finish please keep in mind the unfinished color of this item is raw metal and typically looks darker like a wrought iron finish with possible silver tints in the sunlight.
- 1/2" Head Dimensions
- 3/4" Head Dimensions
- 1" Head Dimensions
- Installation Instructions
- Finish Description
-
- Style: Ball Head
- Texture: Hammered
- Head Diameter: 1/2"
- Thread Diameter: - #6 screw
- Thread Length: 1"
- Driver: Universal Grip Socket
-
- Style: Ball Head
- Texture: Hammered
- Head Diameter: 13/16" - 7/8"
- Thread Diameter: 3/16" - #8 screw
- Thread Length: 1 1/8"
- Drill Bit Size for Hard Wood 9/64"
- Drill Bit Size for Soft Wood 1/8"
- Driver: Universal Grip Socket
-
- Style: Ball Head
- Texture: Hammered
- Head Diameter: 1"
- Thread Diameter: 1/4" #14 screw
- Thread Length: 2 1/4"
- Driver: Universal Grip Socket
-
- Due to the spherical shape of the head of the lag, it is very difficult to drive these lags into the wall with a socket or wrench
- Wrap the head of the bolt in a thick cloth or spare leather
- Use a pipe wrench or pliers to twist the lag into place
