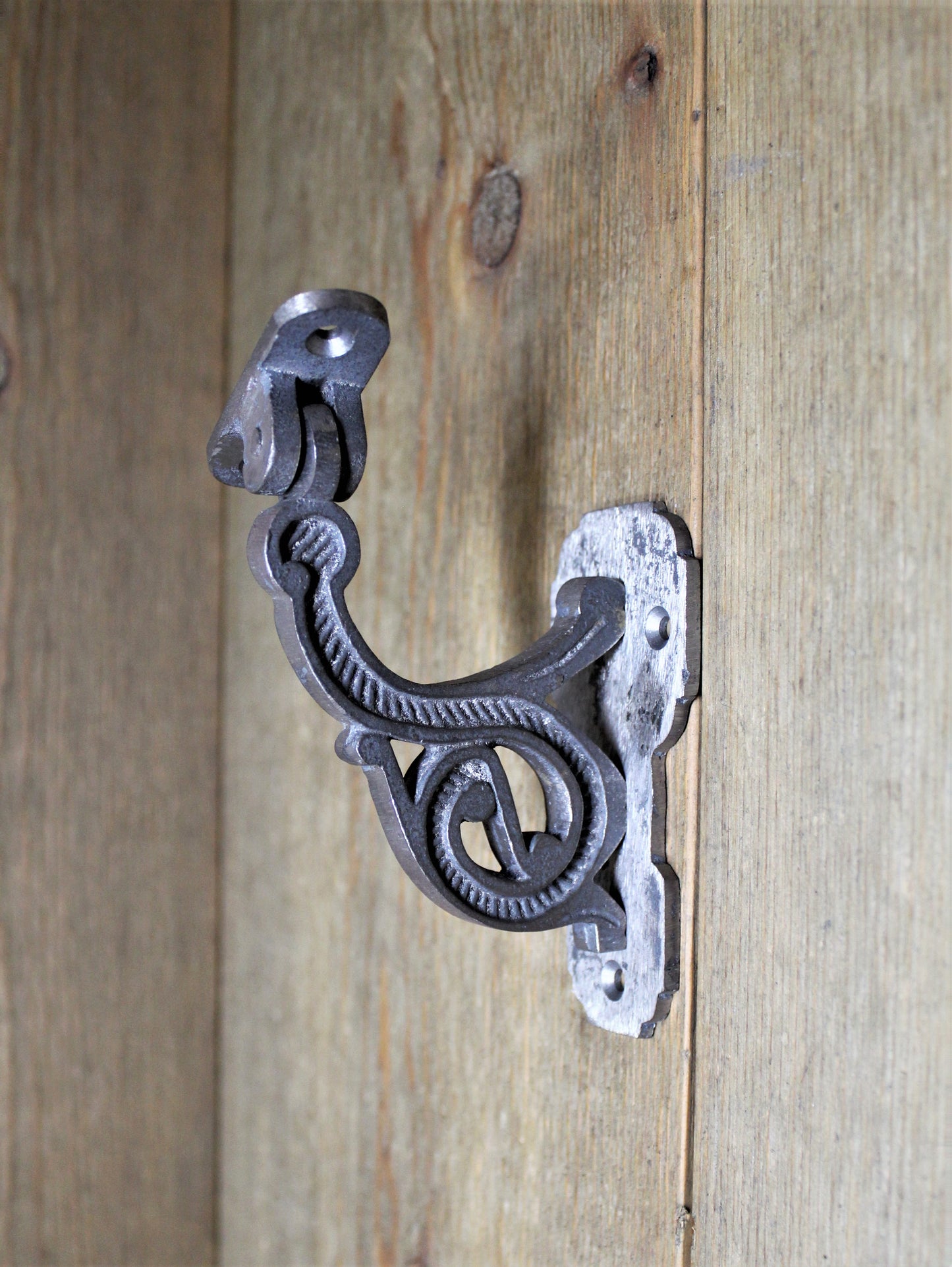

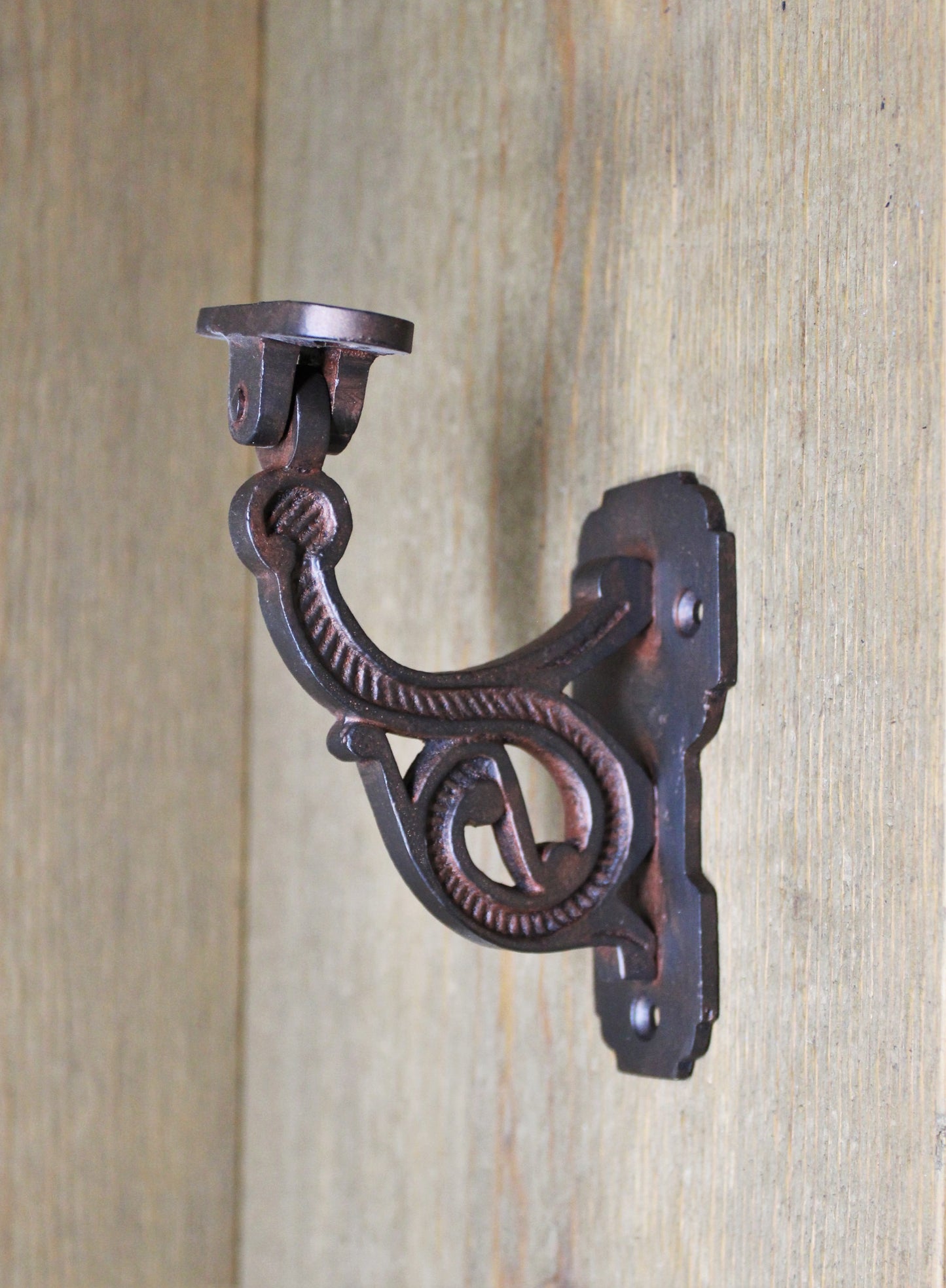

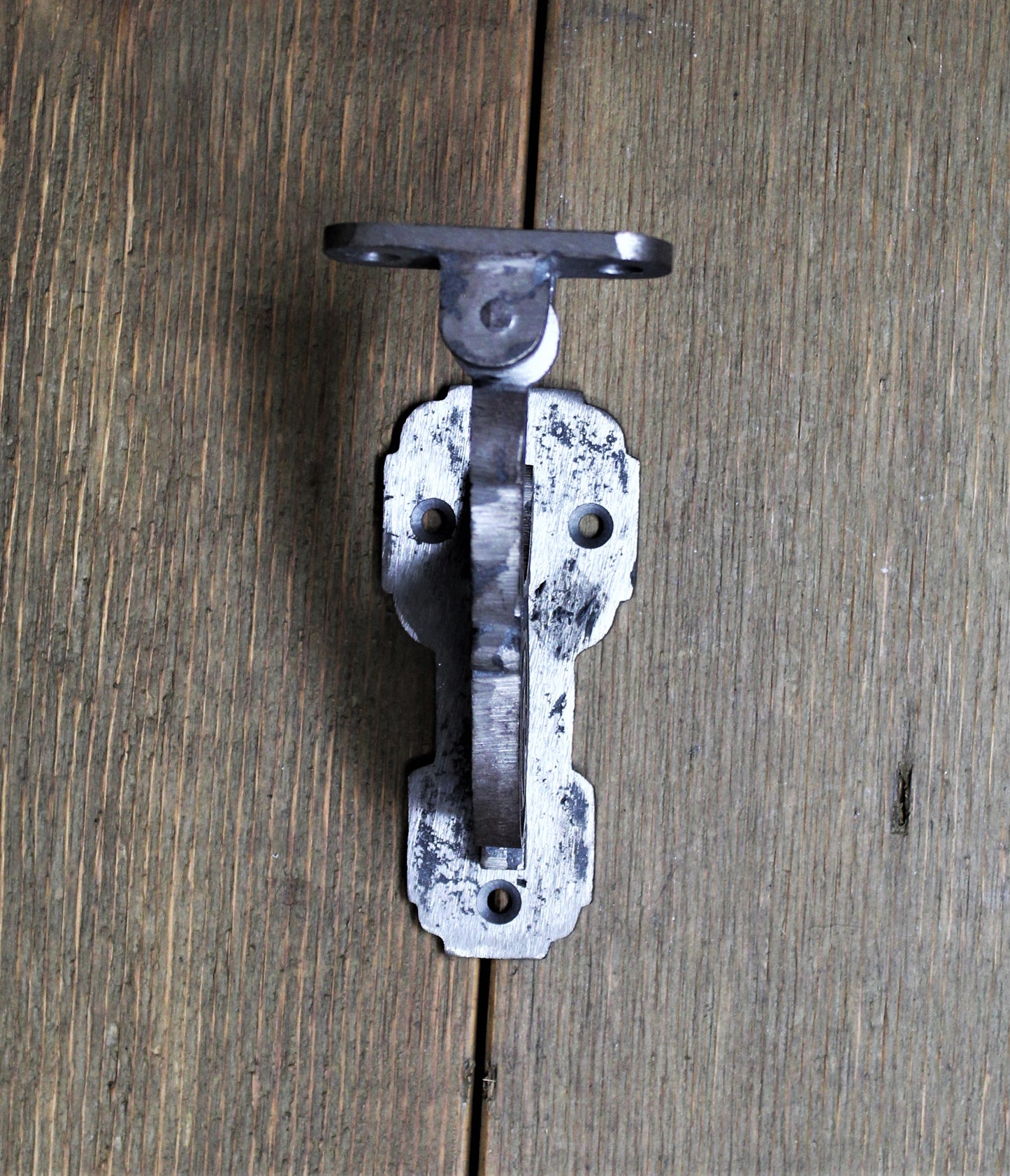

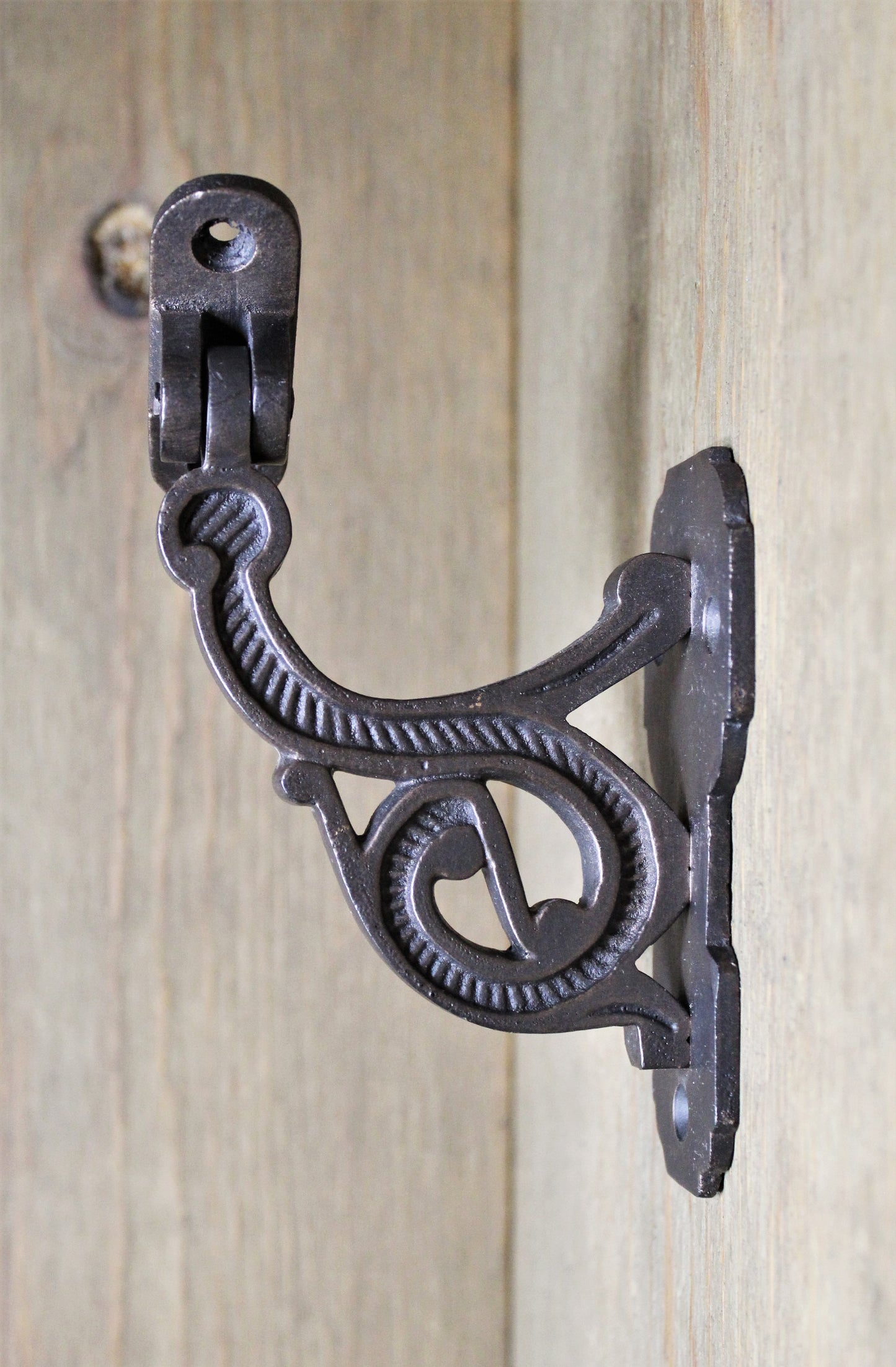

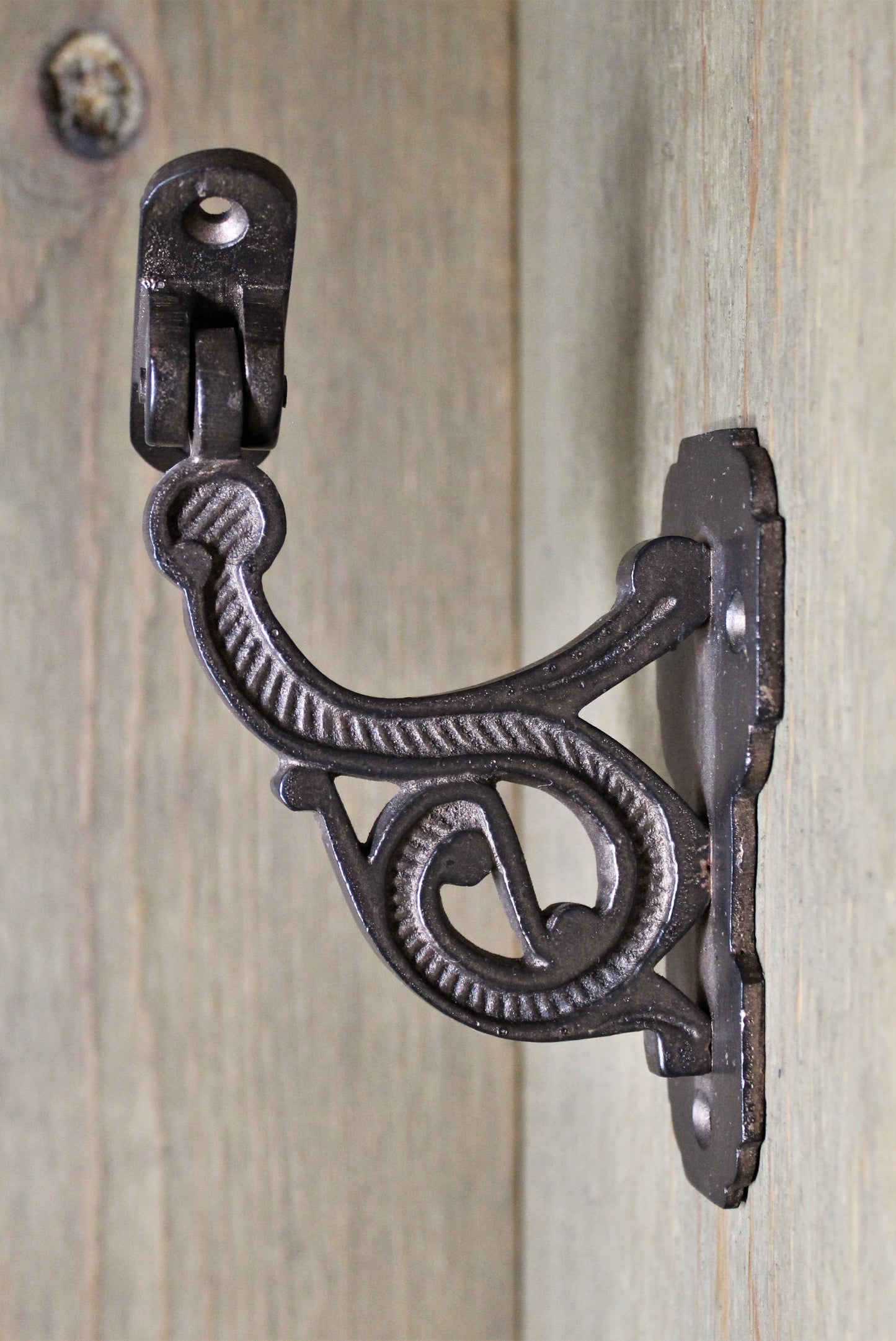

Art Nouveau Adjustable Handrail Bracket

Bi-directional, self-adjusting handrail bracket that should fit most all angles and made for 2 1/2" wide handrail or less to meet general code of 1 1/2" gap to wall.

Overall Height:  5"

Back Plate Height: 4 1/2"

Back Plate Width: 2"

Backplate Thickness: 3/16"

Handrail Arm Thickness: 3/8" thick straight on

Wall to Center of Handrail Mount:  3"

Screw Holes: 1/4" or #14 fasteners

On these handrail brackets it is easiest to mount to your railing first then screw the mounts to the wall.
